    YuChai Diesel Engine Cogeneration Power Plant 1000KVA

    Ask Lasest Price
    Certification : ISO
    Brand Name : Yuchai
    Supply Ability : 20 Sets/month
    Price : $123,056.00 - $225,678.00/Set
    Model Number : 800kW
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    YuChai Diesel Engine Cogeneration Power Plant 1000KVA

    Diesel Engine Cogeneration 1000KVA


    Diesel Generator


    Starlight 1000KVA Diesel Generator Open Type With Yuchai Engine, one of the top Chinese engines and alternators to ensure its supreme quliaty, perforemance and to achieve economy at the same time.


    The generator set has long service life with stable performance.


    Technical Specification of 1000KVA Diesel Generator Yuchai Engine


    1000KVA Diesel Generator Yuchai Engine
    Generator ModelQJ2-800YC
    Output Power880KWFluctuation Ratio≤ 1%
    Rated Voltage400V/230VSteady state frequency regulation≤ 1%
    Frequency50HZFrequency stabilization time≤ 3 S
    Electric SystemThree phase four wireTransient frequency adjustment rate≤ 1%
    Rated Current1584AFluctuation Ratio≤ 1%
    Power Factor0.8 ( Lag)Weight7500Kg
    Steady state voltage regulation rate≤±1%Rpm1500r/min
    Transient voltage regulation rate-15%~+18%Dimensions L*W*H4500*1700*2250(mm)
    Voltage Recover Time≤ 1SCooling ModeClose Water Cooling
    Fuel0# Light DieselNoise (LP7M)114dB(A)
    Diesel Engine
    ManufacturerYuChai, GuangxiBrandYuChai, Guangxi
    Output Power968KWModelYC6C1320-D31
    Cylinder Number6Pressure Ratio13.5.0:1
    Bore / Distance200×210Start ModeElectric
    Fuel Consumption≤195g/kw.hStart PowerDC 24V
    Displacement39.584LSpeed RegulationElectronic Unit Pump EUP
    Ambient Temperature-10℃~40℃InspirationTurbocharging, inter-cooler
    Cylinder ArrangementL Type 6 CylinderEmission LimitNone Road National III Stage
    Alternator
    BrandKWISEModelS404G800D1(800KW)
    Exciting ModeBrushless Self excitationIP GradeIP22

    Voltage-regulating

    System

    AVR Automatic Voltage RegulatingShort time Over-current3~5 Ie No less than 5S
    Insulation GradeHOver Load Capacity1.5Ie No less than 2min
    Winding Material99.99% CopperPhase & WiringThree Phase, Four Wire
    Cogeneration

    Inter Cooler Water: Inter cooler water outlet temperature is around 50℃ which is not warm enough. In order to utilize inter cooler water, we let it into jacket water to utilize its energy.

    High Temperature Jacket Water: Jacket water around 93℃ is led to heat exchanger as heat supply. User side water temperature can be set.

    High Temperature Exhaust Gas: Jacket water is led to exhaust exchanger after coming from heat exchanger and absorb heat energy in in exhaust and it flows into engine. Tee-valve and radiator tank shall be installed to control the water temperature before entering engine (If heat is not fully utilized by user, the return water could be too warm for engine).

    Hot Water Supply: After heating by high temperature flue gas, the hot water will heat user’s heat storage water tank or can be used for other purpose of hearing.

    Hot water flow chart.

    SinoTruck T10 gas engine is selected. The gas engine is deeply developed in fuel control systems to improve its electric efficiency, reliability and fuel adaptivity for certain working conditions.The development also give consideration for dynamic responsiveness, fuel economy, reliability and safety.

    Proven gas engine is controlled by imported gas close-loop lean-burn control system which includes high energy ignition system, gas-exclusive speed regulator, fuel flow rate control valve, variable Venturi mixture. The system is also optimized by our company to achieve high reliability and efficiency.


    S.N.DescriptionQtyUnitRemarks
    1Horizontal water tank1SetRemote water tank, including intercooler tank and emergency water tank.
    2Exhaust Heat Exchanger1SetFlue gas heat recovery.
    3Jacket Water Circulation Pump1SetCirculation of flue gas exchanger and jacket water.
    4Inter Cooler Circulation Pump1SetInter cooler water circulation
    5Two Stage Intercooler1SetRecovery heat from Inter cooler compressed air.
    6Plate Heat Exchanger1SetHeat exchange with user’s water.
    7Tee-Valve with actuator2SetControl heat water flow.
    8PLC Controller1SetTo control the whole heat recovering system.

    About Starlight


    Starlight is a company dedicating itself to power technology and equipment, especially for new and green power equipment.

    We have traditional diesel and gasoline power generators. In the last few years, we focused on gas power technology which is green, clean and more friendly than traditional power equipment.


    We know that the next generation of power will be totally green and clean and we also working on new generation of power technology.


    Our Workshops

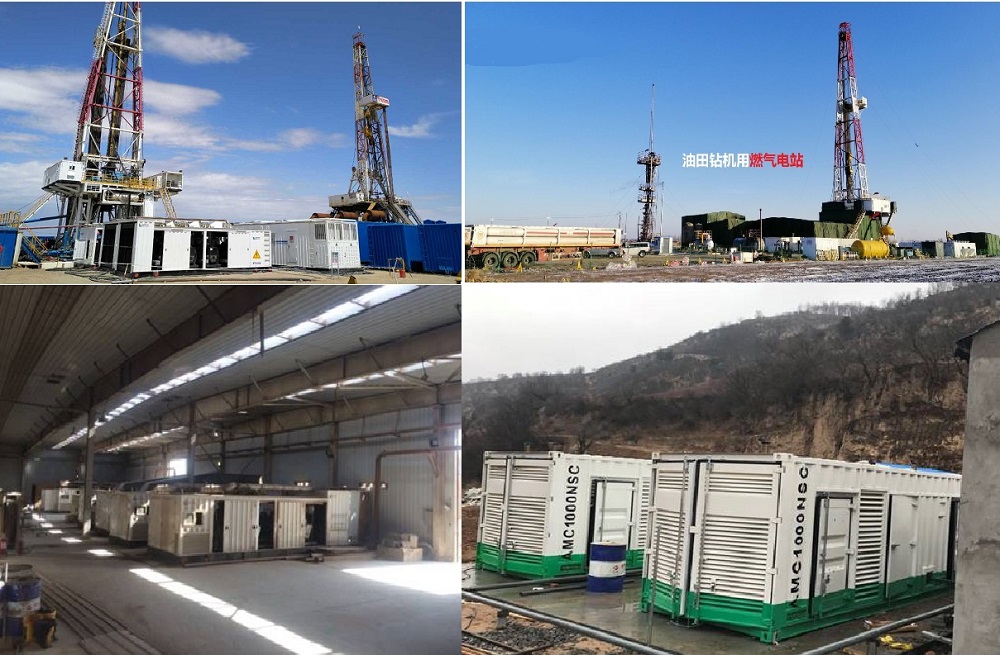

    Our Projects
