    CNG LNG Coalbed Methane Cogeneration CHP Generator 500KW Natural Gas Engine

    Ask Lasest Price
    Brand Name : Starlight
    Model Number : BF12M
    Certification : ISO
    Price : USD 95,000.00 - 108,000.00 per Set
    Payment Terms : L/C, T/T
    Supply Ability : 100 set per month
    Delivery Time : 50 days
    • Product Details
    • Company Profile

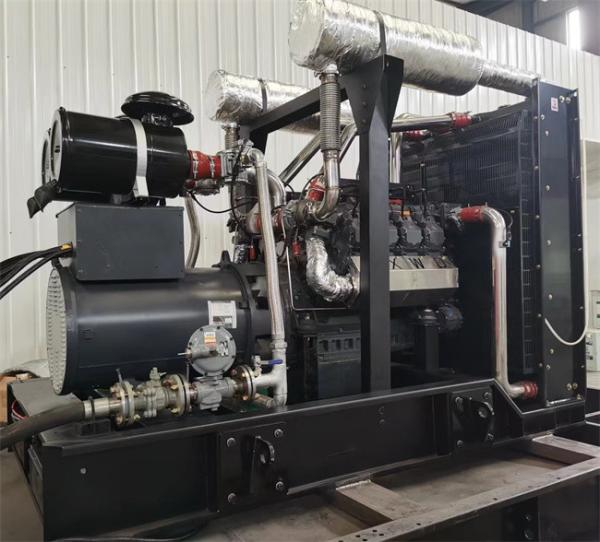

    CNG LNG Coalbed Methane Cogeneration CHP Generator 500KW Natural Gas Engine

    500 kW Natural Gas Coalbed Methane Gas Generator & CHP (Cogeneration, Tri-generation)

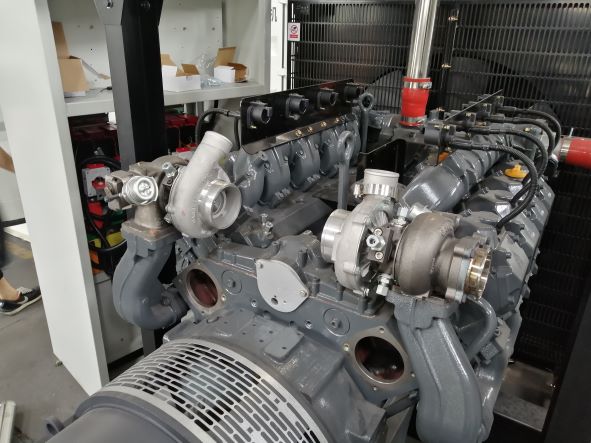

    Gas Engine

    Proven and reliable gas engine is controlled by imported gas close-loop lean-burn control system which includes high energy ignition system, gas-exclusive speed regulator, fuel flow rate control valve, variable Venturi mixture. The system is also optimized by our company to achieve high reliability and efficiency.


    Deutz V8 natural gas engine are used for the generator. The gas engine is deeply developed in fuel control systems which is to improve its electric efficiency, reliability and fuel adaptivity for certain working conditions.The development also give consideration for dynamic responsiveness, fuel economy, reliability and safety.

    Alternator

    High performance, reliable and efficient brushless AC synchronized mecc alte ECO38 alternator is selected to ensure optimized performance of the generator set.

    Technical Parameters


    S.N.

    Item

    Specification

    1

    Genset

    500kW Natural Gas Generator

    1.1

    Model

    BF12M

    1.2

    Rated Power

    500kW

    1.3

    Rated Current

    902A

    1.4

    Rated Voltage

    230/400V

    1.5

    Rated Frequency

    50/60Hz

    1.6

    Continuous Power

    450kW

    1.7

    Start Mode

    DC24V Electric Start

    1.8

    Regulation Mode

    Electric regulation

    1.9

    Fuel Control

    Lean-burn, close-loop control

    1.10

    Ignition

    Electronic control single cylinder independent high energy ignition

    1.11

    Operation Type

    One-button start/stop

    1.12

    Lubricant Consumption

    ≤0.3g/kWh

    1.13

    Power Generation

    ≥3.75 kWh/Nm³(Standard Natural Gas)

    ≥2.0 kWh/Nm³(Bio-gas with methane more than 55%)

    1.14

    Genset Dimension

    3800×1800×2000mm

    1.15

    Genset Weight

    5600kg

    2

    Engine

    2.1

    Brand

    HuaChai Deutz

    2.2

    Model

    V12

    2.3

    Displacement


    2.4

    Intake

    Turbo-charger, forced inter-cooling, four-valve

    2.5

    Rated rpm

    1500/1800

    2.6

    Cooling Method

    Water Cooling

    2.7

    Lubrication

    Pressurized splash lubrication

    2.8

    Lubricant Temperature

    ≤108℃

    3

    Alternator

    3.1

    Brand

    Mecc alte

    3.2

    Mode

    ECO40-1.5L4B

    3.3

    Power Factor

    0.8(lag)

    3.4

    Generating Efficiency

    93.7%

    3.5

    Capacity

    625kVA

    3.6

    Phase

    3-phase, 4-wire

    3.7

    Insulation Grade

    H

    3.8

    Protection Grade

    IP23

    4

    Generator Set Control System

    4.1

    Brand

    KEMAY

    4.2

    Model

    MF25

    4.3

    Function of Controller

    One key start/stop, automatic monitoring/recording, multilevel protection

    4.4

    Displayer

    rpm / lubricant pressure/ water temperature/ running hours/ current/ voltage/ frequency/ battery voltage/ active power/ reactive power/ load distribution proportion

    4.5

    Protection

    Auto control and warning for high water temperature, low lubricant pressure, over-speed, over-current, ac/dc low or high voltage

    5

    Canopy

    Ski-mounted canopy, forced ventilation

    1. The parameters are based on low heat vale 35.88MJ/Nm3 fuel and conform to ISO8528/1, ISO3046/1, BS5514/1.
    2. The data is achieved at standard conditions: absolute atmosphere pressure-100kpa, ambient temperature :25°C,relative humidity: 30%.
    3. Under above condition, it conforms to DIN standard ISO 3046/1 rate. Tolerance of fuel consumption is ±5%.
    4. Generator set tested power factor is 0.8 and above.


    About Us


    Starlight Industry Co., Ltd. is an innovative company dedicating to new and high technology application.


    We are a leading supplier of gaseous fuel powered gensets, CHP/CCHP units and a group of high-speed power equipment solutions for oil and gas industry, bio-energy, urban waste disposal, coal bed methane (CBM) and syngas applications. With fourteen years of dedication in research and development on the control of gaseous fuel combustion and power management, we are the pioneer, and up to now the only one in the world that applies natural gas and oil associated gas to power oil drilling rigs. Starlight Gas Powers equipment also features integrated and full range utilization of energy and recyclable energy contained in waste of modern industry.


    The company’s research & development team is leaded by well-known gas engine experts. The team has successfully carried out dozens of major national technical projects on gas engine development and has developed several kinds of gas engines.


    Starlight gas engines/generator sets/CHPs have been sold to a large number of countries and regions all over the world. In future, Starlight will always strive to improve advanced energy equipment development and application, to become an international gas power solution provider.


    With dozens of years of dedication in research and development of gaseous fuel combustion and power management technology, we developed gas generators ranging from 3 KW to 1500 kW in a single unit.



    Generator Workshop



    Engine Assembly Workshop


    Features of Starlight gas generator sets:


    1. Adaptability & Flexibility


    Unique design of Electrical Control System enables our gas generators to use various gaseous fuel and be used in almost all complicated applications. Our generators can be fed by LNC, CNG, LPG, Biogas, CBM, Syngas etc. The generators are used in power plants, oil & gas fields (either for drilling or production), factories, commercial or governmental buildings, LNG plants, alcohol factories, landfills, poultry farms etc. Our gas engines are also widely used in various vehicles, such as buses, trucks, boats and so on. Our generators and engines can also be tailor made according to client’s fuel and working conditions.


    2. Reliability & Dependability


    Starlight design and development of gas engines based on excellent diesel engine platforms and the excellent platforms combined with cutting-edge control system end with outstanding performance and reliability. Some of our generators have reached the record of more than 30,000 hours without overhaul.

    The intellectual lean-burn control technology makes average exhaust temperature at 530℃, which noticeably minimizes the thermal load of piston and air valve and the reliability of such components are greatly improved. Strong and weak electricity are designed to be separated, which avoid control interference, and in terms improve the reliability of the electrical components.


    3. Low Emission & Environmental Friendliness


    The unique design of engine combustor makes complete combustion and effectively reduces the harmful gases such as NOx in the exhaust. Our engine can achieve the world most strict emission standard.


    4. Economic Effectiveness


    With advanced system integration solutions and unique design, the usage of the lean-burn control technology achieves higher fuel efficiency, and save up to 15% fuel than other gas generators on the same power capacity.

    Meanwhile, gaseous fuel is economically competitive comparing with traditional diesel or petrol fuel.
