Natural Gas Silent Power Generator Soundproof 250kW

    Buy cheap Natural Gas Silent Power Generator Soundproof 250kW from wholesalers

    Buy cheap Natural Gas Silent Power Generator Soundproof 250kW from wholesalers
    • Buy cheap Natural Gas Silent Power Generator Soundproof 250kW from wholesalers
    • Buy cheap Natural Gas Silent Power Generator Soundproof 250kW from wholesalers

    Natural Gas Silent Power Generator Soundproof 250kW

    Ask Lasest Price
    Certification : ISO
    Brand Name : Starlight
    Supply Ability : 50 Sets/Month
    Price : $42,940.00 - $55,460.00/Piece
    Model Number : 250kW Silent
    Delivery Time : 3 Weeks
    • Product Details
    • Company Profile

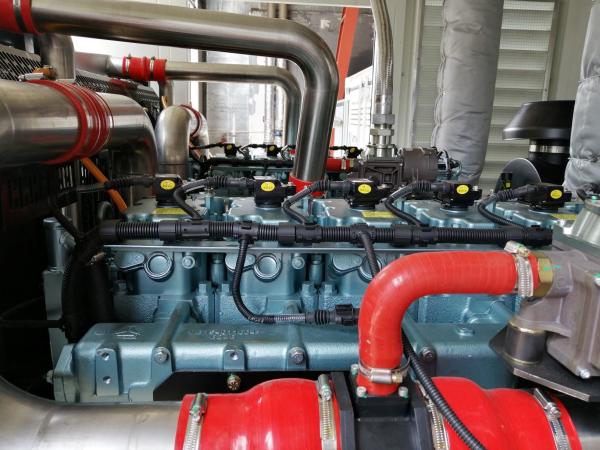

    Natural Gas Silent Power Generator Soundproof 250kW

    250kW Natural Gas Generator Soundproof


    Main configuration & Features

    - Highly efficient gas engine
    - AC Synchronous alternator
    - Gas safety train and gas protection device against leakage
    - Exhaust and jacket water ex-changer
    - Heating water and jacket water circulation system
    - Expansion tank and water jacket heater
    - Advanced engine control system, including: ignition system, detonation control system, speed control system, air/fuel ratio control system
    - Strict shop test for all generator sets
    - Industrial silencer reduces the noise by 12-20dB (A)
    - Unattached switch cabinet and electric control cabinet
    - Multi-functional control system with easy operation
    - Data communication interfaces integrated into control system
    - Lighting and smoke alarm system
    - Monitoring battery voltage and charging automatically
    - Auto refilling oil system
    - Bus interface for connecting to higher level control unit
    FEATURES AT A GLANCE
    Assembly
    Natural Gas Silent Power Generator Soundproof 250kW
    Details
    Natural Gas Silent Power Generator Soundproof 250kW
    Specification 250kW Natural Gas Generator Soundproof
    SNDescriptionParameter
    1Engine ModelBF8M1015C
    2RMP1500
    3Displacement15.87L
    4Engine Rated Power345kW
    5Bore*Stroke132mm×145mm
    6Pressure Ratio11.5:1
    7Ignition Sequence1-8-4-5-7-3-6-2
    8Engine TypeV-type, 4-Stroke, 4-Valve, Water-cooling
    9Thermostat Opening Temperature79℃,87℃,Full Opening temperature 94℃,102℃
    10Engine Exhaust Temperature450-520℃
    11Intake SystemTurbocharged, intercooled
    12Cooling systemForced Water Cooling
    13Combustion typeLean burn, closed loop control
    14Sparking ModeElectrical controlled single cylinder independent high-energy ignition
    15Lubricating SystemPressure splash lubrication
    16Engine Oil Temperature≤108℃
    17Engine Oil Pressure70-85psi
    18Engine Oil Consumption≤0.3g/kWh

    Engine Control System

    The gas engine is controlled by close-loop lean burn managing system which includes single cylinder independent spark, electric speed regulation system, fuel close loop control system, environment adaptability system, automatic diagnosis and protection system to ensure precise and reliable operation of the engine in all working conditions. The systems satisfy all economical efficiency, power and emission requirements. Furthermore, according to the actual application situation, working conditions and exact fuel compositions, we optimized the whole engine and engine control system for its best performances.

    Alternator

    Mecc Alte ECO38 AC brushless synchronous alternator and specially designed motion parts are used to endure load shock and interference and ensure the equipment’s long term stability and reliability.
    1
    ModelECO38-2L4/3L4
    2Power Factor0.8(lag)
    3Generating Efficiency0.94%
    4Generator Capacity300kVA/350kVA
    5PhaseThree Phase Four Wire
    6Insulation GradeH
    7Protection GradeIP23


    Soundproof Canopy

    Sound proof canopy is provided and noise will be within 75dB.
